How to connect and use the running water LED strip?
Contact Name : Penny；Tel /Whatsapp: +8615327926624；Email : sale@ledtealight.com
1. Preparation
Confirm the voltage (such as 12V or 24V), power (power per meter) and length of the light strip, and select the appropriate power supply according to the power of the light strip. For example, if the power per meter of the lamp strip is 10W and the length is 10 meters, the total power is 100W and the power of the power supply should be greater than or equal to 100W.

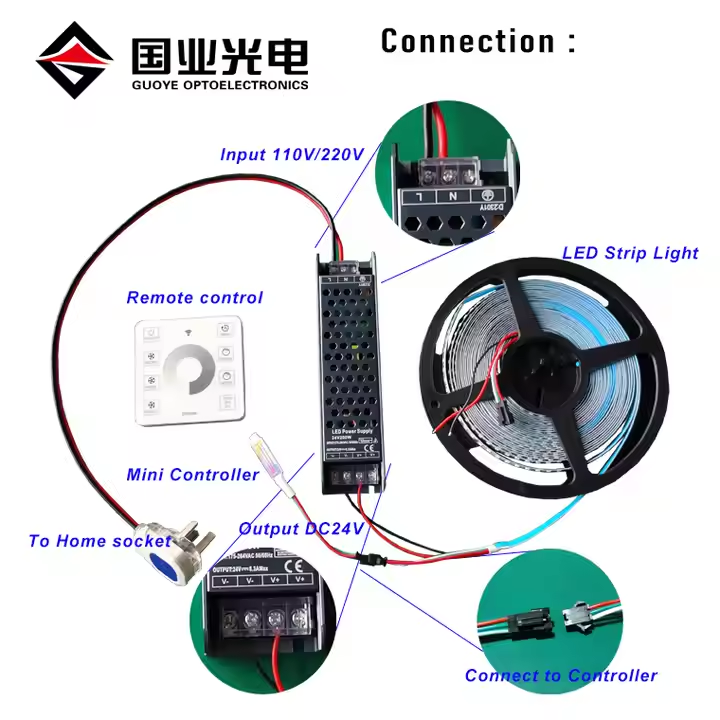

2. Wiring steps
(1) Controller connection
Connect the input end of the chasing effect light strip to the signal output end of the controller. The plug-in connection between the strip and the controller is usually used to ensure that the LED strip and the controller are connected firmly and the signal transmission is stable.
(2) Lighting strip connection
Connect the red wire (positive electrode) and black wire (negative electrode) to the positive and negative electrode of the power supply.
(3) Power adapter connection
Connect the output of the power supply to the positive and negative poles of the smart flowing strip. Usually, the positive and negative electrodes will be marked on the light strip, the red line is the positive electrode, and the black line is the negative electrode.
The input of the power adapter is connected to a 220V/110V home power outlet.
3.Installation and debugging
After connecting the cable, turn on the power adapter and the programmable strip should start working. Use the controller to adjust the mode, brightness and speed of the color chasing led strip to ensure that the light strip can display various effects normally.
4. Things to note
(1)Safety
During wiring, make sure the power is turned off and avoid electric shock.
(2) Avoid overload
Make sure that the power of the power adapter is sufficient to support the total power of the led chasing light strips to avoid overload damage to the power supply or chasing led strip light.
(3) Read the instruction manual
Different brands and models of light strips and controllers may vary slightly, so it is recommended to read the product manual carefully.
